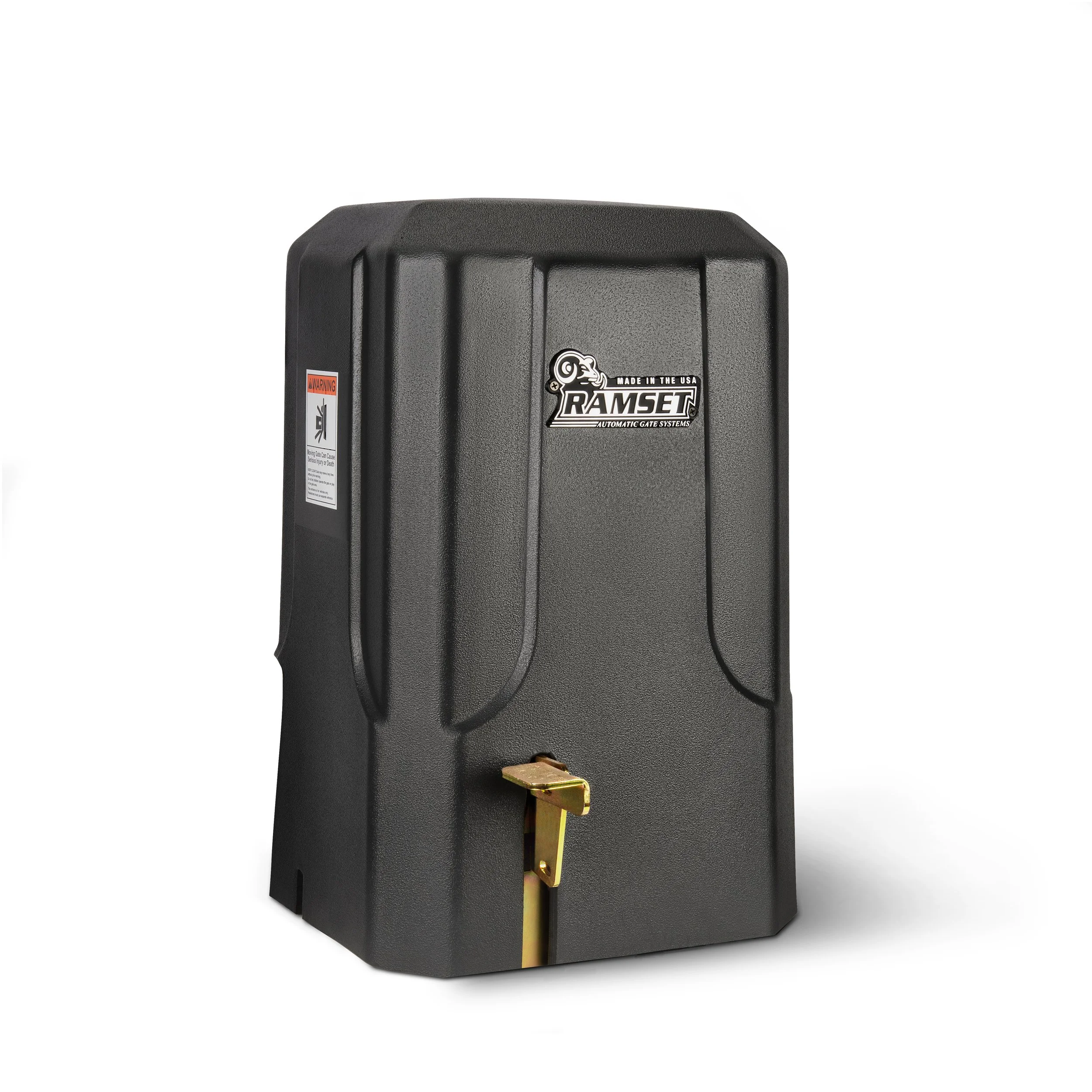

Ram 100 DC
Gate Travel: 35’
Max. Gate Weight: 1,800 LBS
ETL Listed: UL 325 Compliant
Slow Stop, Soft Start
Allows for a smooth gate operation without abrupt stops or harsh start
Battery Back Up System
In the event of a loss of power that gate operator will go into battery mode. This allows your gate to continue to operate for a limited period of time, until power is restored.
Emergency Foot Pedal Release
Ability to manually open you gate in case of an emergency.
Easy Installation
EP Learn Mode: Created for the convenience of installers to easily install photoeyes.
Left Right Switch: Change the direction of the installation with the switch of a button
Close Delay: Adjustable timer, to meet the requirements of each unique installation
Fail Safe/Secure
When the battery reached 90% of its capacity and AC power remains unavailable, our system offers you the flexibility to choose the gate's fail position. The gate will either fail in the open or closed position, depending on your needs.
| SPECS | Ram 100 DC |
|---|---|
| Class | Residential/ Commercial |
| Max Gate Weight | 1,800 lbs |
| Max Gate Length | 35' |
| Motor | "BRUSHLESS 24 VDC, 13 AMPS" |
| Gate Speed | 12" per Second |
| VAC | 115- Single phase |
| Battery Backup System | (2) 7Ah 12VDC Batteries |
| W x L x H | 15" X 14.5" X 22" |
| Shipping Weight | 114 lbs |
| RAM 100 DC | ||
|---|---|---|
| PART NUMBER | DESCRIPTION | QTY USED |
| 800-00-80 | Chassis, RAM 100 AC/DC | 1 |
| 800-02-03 | Gear Reducer - Size 43, Ratio 30:1 (C-Face) [R100] | 1 |
| 800-04-04 | Motor, Brushless DC, 1.4Nm, 24VDC | 1 |
| 800-06-22 | Sprocket - 41B14 1/2" [R100] | 1 |
| 800-20-00 | Limit Switch [R100] | 2 |
| 800-20-20 | Limit Switch, Foot Pedal [R100, R1000,R5500] | 1 |
| 800-22-02 | Spring, FP Switch - 1/2' x 2' [R100,R1000,R5500] | 1 |
| 800-22-07 | Spring, Spring Loaded Bracket - Size 8- 1/2" [R100,R1000,R5500] | 2 |
| 800-24-22 | Fork, Foot Pedal Release [R100, R1000, R5500 AC/DC] | 1 |
| 800-52-27 | Chain, Limit - #41- 18Links [R100AC/DC] | 1 |
| 800-54-24 | Limit Switch Bracket [R100 AC/DC] | 1 |
| 800-54-75 | Bracket, Spring Loaded [R100] | 1 |
| 800-60-07 | Transformer, Dual 115V / 230V Input with 4 input leads | 1 |
| 800-60-10 | Switch, Rocker | 2 |
| 800-60-35 | Bridge Rectifier, Single Phase, 100 V, 35 A, Module, 4 Pins, | 1 |
| 800-64-50 | Radio Receiver Terminal | 1 |
| 800-65-01 | Control Board, Logic [AC/DC] | 1 |
| 800-65-05 | Control Board, Driver [DC] | 1 |
| 800-66-09 | Lexan, PLASTIC COVER [R100AC/DC] | 1 |
| 800-68-18 | Manual, RAM 100, RAM 1000, RAM 5500 DC | 1 |
| 800-70-00 | DC Battery, 12VDC - 7.5Ah [BBS] | 2 |
| 800-70-22 | Horn Alarm Buzzer, 120 dB | 1 |
| 800-70-59 | Bearing Plate [R100] | 1 |
| 800-70-98 | Warning Sign For Gates - Slide/Swing | 2 |
| 800-75-07 | Cover, Polyethlene [R100] | 1 |
| 800-75-21 | Clutch Release Assembly | 1 |
| 800-58-51 | Clutch Release Assembly (Sprocket, 4 Pin Disc, Arbor, Snap Ring) | 1 |
| 800-22-06 | Spring - 1 1/4" X 1" (3 1/4 Turns) [R1000,5500] | 1 |
| 800-40-55 | Washer, Flat - Id 1 1/16" : Od 2" : Thickness .090" | 1 |
| 800-34-22 | Set Screw - 1/4" - 20 X 3/8" | 2 |
| 800-34-30 | Set Screw - 1/4' - 28 X 1/8'- *** Fine Thread *** | 1 |
| 800-42-32 | Key Way-1/4" X 2" Sq. | 1 |
| 800-40-05 | Wahser, Flat - Stainless Steel - Id 1/4", Od 1 1/2" | 1 |
| 800-32-56 | Screw, Machine - Zinc-Plated Steel Pan Head - 1/4"-20 X 1/2" | 1 |
| 800-75-30 | Idler Wheel Assembly- [R100] | 2 |
| 800-36-52 | Bolt, Hex Head - 5/8" - 11 X 3 1/2" | 1 |
| 800-38-18 | Nut, Hex Head - 5/8" | 2 |
| 800-73-70 | Idler Wheel, Uhmw - 2 1/2" X 1 1/4" - I.D. 5/8" [R100] | 1 |
| 800-75-72 | Limit Shaft Assembly- [R100] | 1 |
| 800-12-09 | Shaft, Limit Switch - 1/2" - 11 X 10.8" (6 3/8" Of Thread, 5/8" Thread Shaft) [R100] | 1 |
| 800-42-00 | Key Way - 1/8' Sq. X 7/8' | 1 |
| 800-20-50 | Limit Switch Nuts [R100] | 2 |
| 800-44-04 | Bearing, Sealed - 6202Rs X 1/2" [R100] | 2 |
| 800-70-10 | Collar, Limit Shaft - 1/2" [R100] | 2 |
| 800-75-65 | Chain Kit- [R100] | 1 |
| 800-38-16 | Nut, Hex Head - 1/2" | 4 |
| 800-52-02 | Chain - #41 (10ft per box) | 2 |
| 800-52-30 | Chain Bolt - 1/2" - 13 x 3 1/4" | 2 |
| 800-54-15 | Bracket, Chain (Left) - 3/8" x 2" x 2" x 3 1/4" | 1 |
| 800-54-16 | Bracket, Chain (Right) - 3/8" x 2" x 2" x 3 1/4" | 1 |
