Ram 1000 AC
Gate Travel: 45’
Max. Gate Weight: 1,500 LBS
ETL Listed: UL 325 Compliant
ETL Listed
Our gate operators have been rigorously tested to meet the strict safety standards set forth by the UL 325 industry guidelines. To comply with these standards external entrapment protection devices will be required to meet UL 325 safety requirements. Your installer will recommend the appropriate types of devices based on your specific installation.
Emergency Foot Pedal Release
Ability to manually open you gate in case of an emergency.
Easy installation
EP Learn Mode: Created for the convenience of installers to easily install photoeyes.
Left Right Switch: Change the direction of the installation with the switch of a button
Close Delay: Adjustable timer, to meet the requirements of each unique installation
One Pass
Allows for gate to close immediately upon entrance.
Smart Home Compatible
Easily connect devices to the gate operator through the relay connection on the board.
| SPECS | Ram 100 AC | |
|---|---|---|
| Class | Industrial/ Commercial | |
| Max Gate Weight | 1,500 lbs | |
| Max Gate Length | 45' | |
| Motor | 1/2 Hp, 115 VAC, 4.5 AMPS | |
| Cycles | Continuous | |
| Gate Speed | 12" per Second | |
| VAC | 115- Single phase | |
| Battery Backup System | - | |
| W x L x H | 16.5" X 14.5" X 22" | |
| Shipping Weight | 125 lbs | |
| Emergency Release | Foot Pedal | |
| RAM 1000 AC | ||
|---|---|---|
| PART NUMBER | DESCRIPTION | QTY USED |
| 800-00-81 | Chassis,RAM 1000, RAM 5500 AC/DC | 1 |
| 800-02-51 | Gear Reducer - Size 60, Ratio 40:1 (C-Face) [R1000,R5500] | 1 |
| 800-04-00 | Motor,C- Face, 120VAC, 1/2Hp | 1 |
| 800-06-09 | Sprocket - 41BS 15 X 3/4" [R1000, R5500] | 1 |
| 800-20-01 | Limit Switch [R1000,R5500] | 2 |
| 800-20-20 | Limit Switch, Foot Pedal [R100, R1000,R5500] | 1 |
| 800-22-02 | Spring, FP Switch - 1/2' x 2' [R100,R1000,R5500] | 1 |
| 800-22-07 | Spring, Spring Loaded Bracket - Size 8- 1/2" [R100,R1000,R5500] | 2 |
| 800-24-22 | Fork, Foot Pedal Release [R100, R1000, R5500 AC/DC] | 1 |
| 800-52-21 | Chain, Limit- #41 x22" (22 LINKS) [R1000, R5500] | 1 |
| 800-54-76 | Bracket, Spring Loaded [R1000,R5500] | 1 |
| 800-60-02 | Transformer, 115/230VAC TO 24VAC | 1 |
| 800-60-10 | Switch, Rocker | 2 |
| 800-64-50 | Radio Receiver Terminal | 1 |
| 800-65-01 | Control Board, Logic [AC/DC] | 1 |

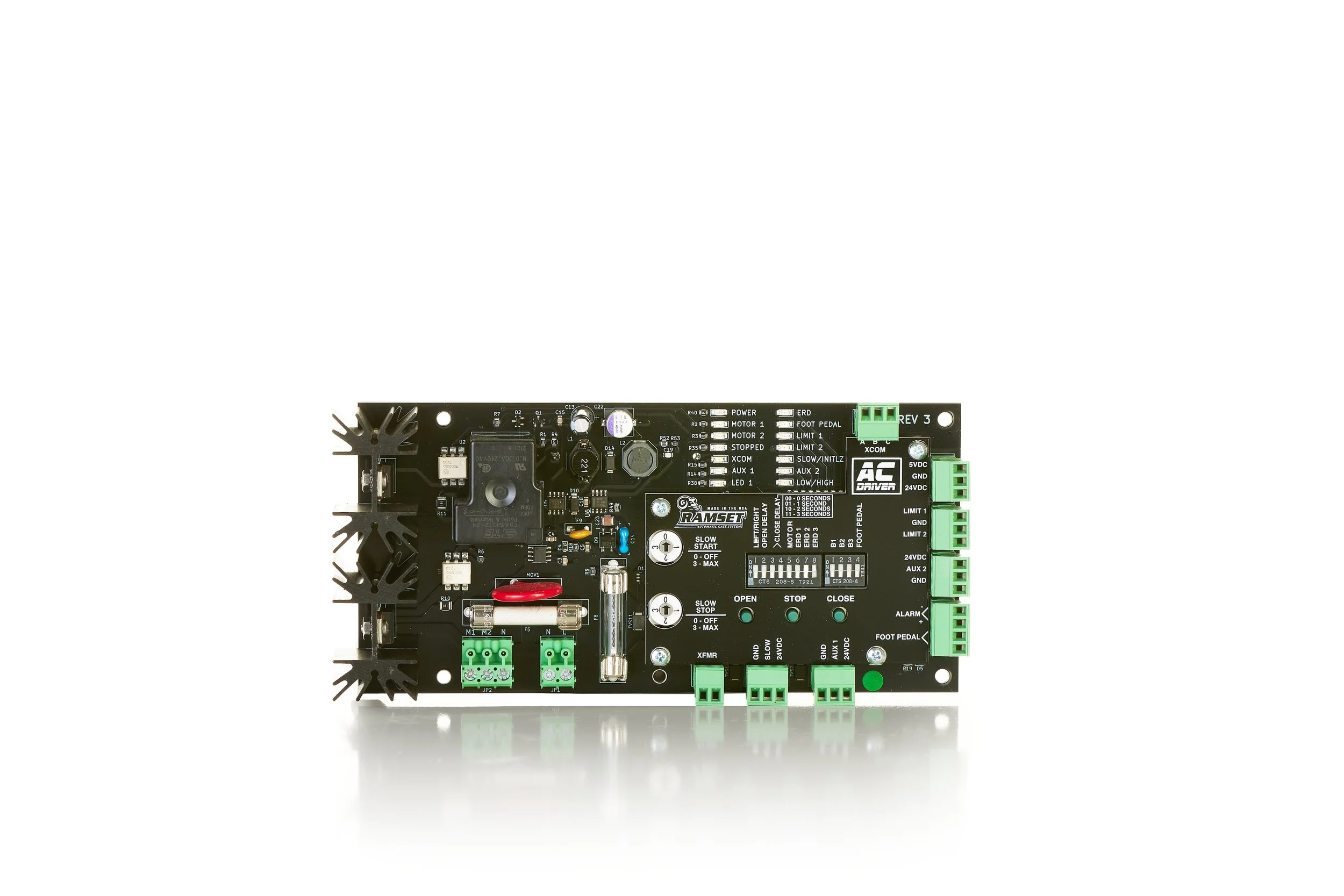

| 800-65-02 | Control Board, Driver [AC] | 1 |
| 800-66-10 | Lexan, PLASTIC COVER [R1000,R5500AC/DC] | 1 |
| 800-68-11 | Manual, RAM 100, RAM 1000, RAM 5500 AC | 1 |
| 800-70-22 | Horn Alarm Buzzer, 120 dB | 1 |
| 800-70-52 | Bearing Plate [R1000,R5500] | 1 |
| 800-70-98 | Warning Sign For Gates - Slide/Swing | 2 |
| 800-75-08 | Cover, Polyethlene [R1000,R5500] | 1 |
| 800-75-21 | Clutch Release Assembly | 1 |
| 800-58-51 | Clutch Release Assembly (Sprocket, 4 Pin Disc, Arbor, Snap Ring) | 1 |
| 800-22-06 | Spring - 1 1/4" X 1" (3 1/4 Turns) [R1000,5500] | 1 |
| 800-40-56 | Washer, Flat - Id 1 1/16" : Od 2" : Thickness .090" | 1 |
| 800-34-22 | Set Screw - 1/4" - 20 X 3/8" | 2 |
| 800-34-30 | Set Screw - 1/4' - 28 X 1/8'- *** Fine Thread *** | 1 |
| 800-42-32 | Key Way-1/4" X 2" Sq. | 1 |
| 800-40-05 | Wahser, Flat - Stainless Steel - Id 1/4", Od 1 1/2" | 1 |
| 800-32-56 | Screw, Machine - Zinc-Plated Steel Pan Head - 1/4"-20 X 1/2" | 1 |
| 800-75-31 | Idler Wheel Assembly [R1000,R5500] | 2 |
| 800-36-52 | Bolt, Hex Head - 5/8" - 11 X 3 1/2" | 1 |
| 800-38-18 | Nut, Hex Head - 5/8" | 2 |
| 800-40-40 | Washer, Flat - Id 5/8' : Od 1 5/16' | 1 |
| 800-46-01 | Bushing, Idler Wheel Sleeve - Id 5/8" : Od 7/8" X 1 13/16" [R1000,R5500] | 1 |
| 800-73-71 | Idler Wheel, Uhmw - 3 1/2" X 1 1/2" - I.D. 7/8"[R 1000] | 1 |
| 800-75-73 | Limit Shaft Assembly [R1000, R5500] DC | 1 |
| 800-12-03 | SHAFT, LIMIT SWITCH - 3/4'-14 x 10 3/4' (6 1/2' thread, 1' dia. thread shaft) [R1000,R5500] | 1 |
| 800-42-10 | KEY WAY-3/16 SQ. X 7/8" | 1 |
| 800-20-51 | Limit Switch Nuts [R1000,R5500] | 2 |
| 800-44-03 | Bearing, Sealed - 3/4" [R1000,R5500] | 2 |
| 800-70-11 | Collar, Limit Shaft - 3/4" [R1000,R5500] | 2 |
| 800-75-66 | Chain Kit- R1000/5500s | 1 |
| 800-38-16 | Nut, Hex Head - 1/2" | 4 |
| 800-52-00 | Chain - #40 (10ft per box) | 2 |
| 800-52-30 | Chain Bolt - 1/2" - 13 x 3 1/4" | 2 |
| 800-54-15 | Bracket, Chain (Left) - 3/8" x 2" x 2" x 3 1/4" | 1 |
| 800-54-16 | Bracket, Chain (Right) - 3/8" x 2" x 2" x 3 1/4" | 1 |
